Combustible Gas Leak Detectors

Combustible Gas Leak Detectors
Combustible Gas Leak Detectors

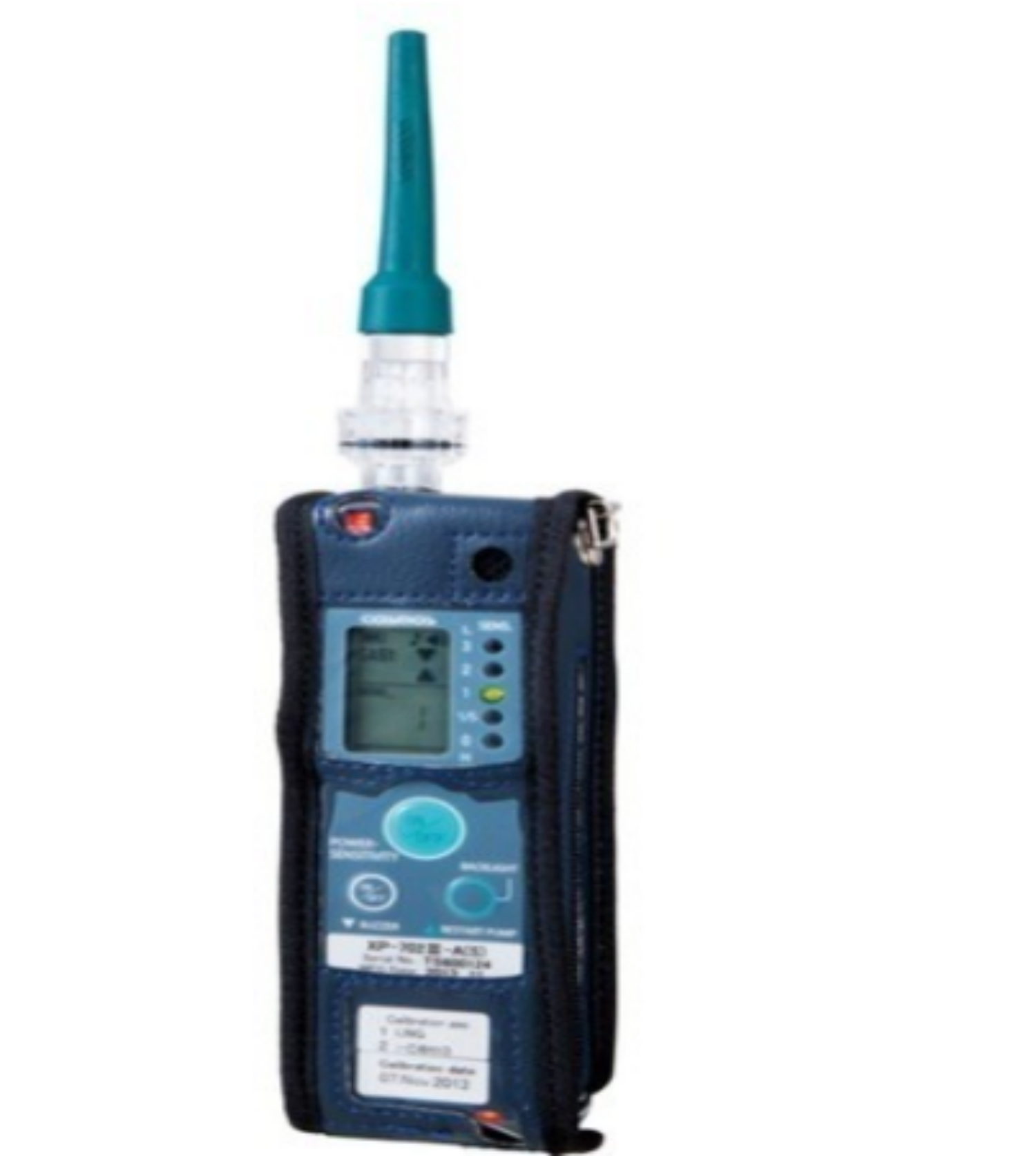

Product Code : XP-702III
Product Description

Combustible Gas Leak Detectors

Our organization has gained recognition as one of the distinguished manufacturers, exporters and suppliers of high quality Combustible Gas Leak Detectors. These leak detectors are used for detecting the leakage of combustible gases. Suitable for liquefied petroleum gas (LPG), natural gas (methane), propane, etc, these gas leak detectors have both audio as well as video alarming facility. We design and manufacture these gas leak detectors in accordance with the international quality standards using optimum grade raw material and ultra-modern technology. Further, we offer these Combustible Gas Leak Detectors in various specifications as per the exact needs of the clients at industry leading price.

Features:

  • Compact design

  • Clear display

  • Easy to use

  • High strength

Specifications:


Model
XP - 702 II Z-B
XP - 702 II Z-A XP - 702 II Z-F
Gas Detected
One type of combustible gas (e.g., city gas, LPG)
Two type of combustible gas (selectable)
CFC substitutes and combustible gas (selectable)
Detection Principle
Hot wire semiconductor
Minimum Detectable
Leak Rate
City gas, LPG, etc. : 3.3x10-6 Pa m3/S
CFCs : Leakage of 12.4 g/year (R-407C) or 11.2 g/year (R-410A)
Minimum Detectable
Concentration
City gas, LPG, etc. : 10ppm
CFCs : 30ppm
Response Time
3s or less (not including CFCs)
Detection Indication
Intermittent buzzer and flashing lamp
Power Source
3xAA alkaline dry cells
Battery Life
Up to 18 hours (by alkaline dry cells) at constant temperature and humidity
Operating
Temperature
-20 to 50 oC
Dimensions
W60 x H140 x D40mm (excluding protrusions)
Weight
Approx. 260g (excluding batteries)
Standard
Accessories
Probe with filter/moisture trap, Check gas, Standard attachment, 3xAA alkaline dry cells, Hand strap, Spare filters
Optional Accessories
Probe for testing roadway surfaces, Telescopic gas probe, Earphones, etc.
