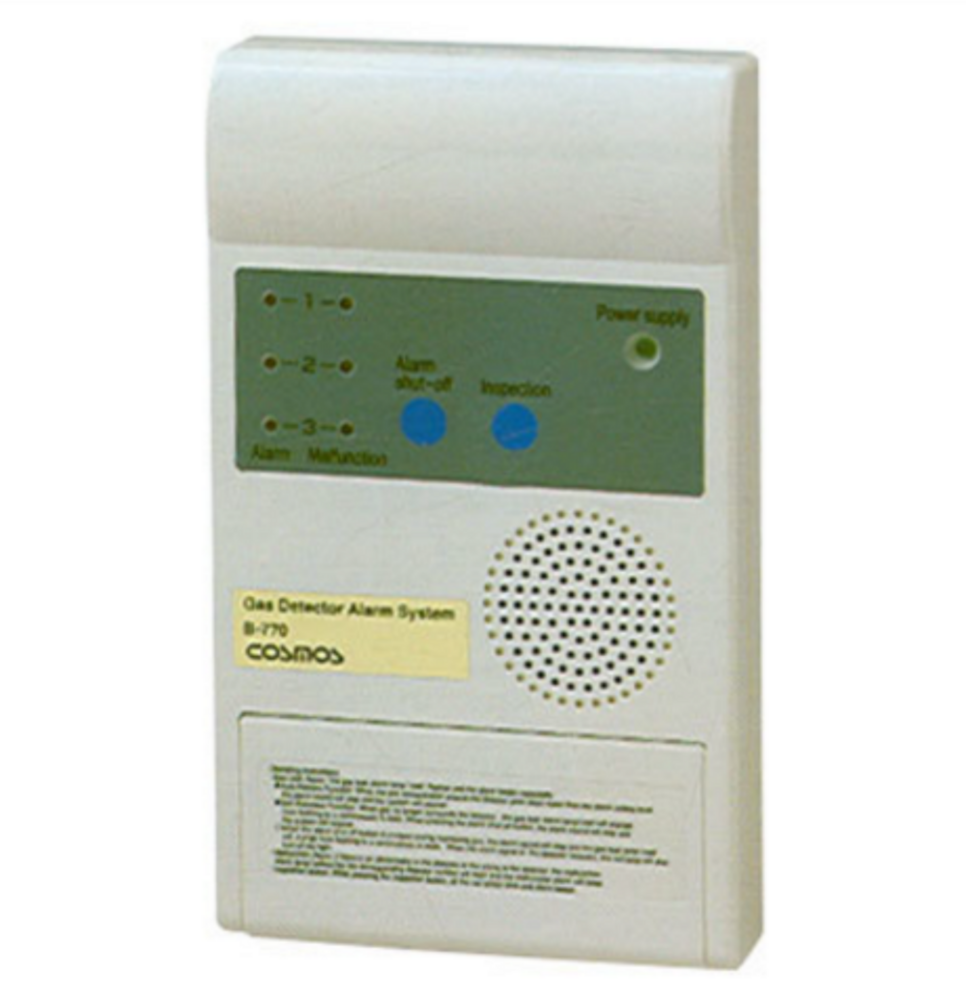

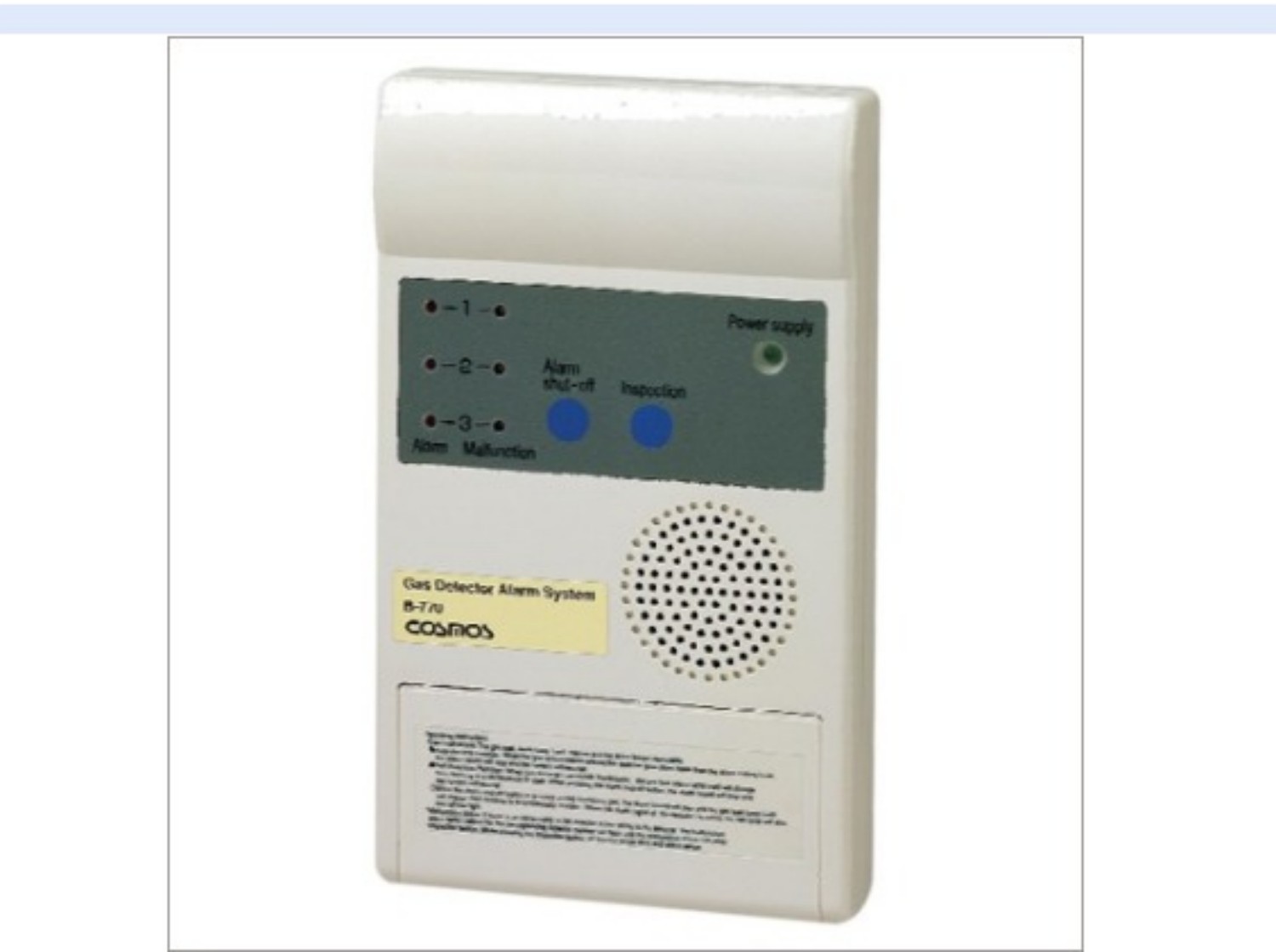

Gas Detector Alarm

Gas Detector Alarm
Gas Detector Alarm
Product Code : B-770
Product Description

Gas Detector Alarm

We are instrumental in providing our clients a comprehensive range of Gas Detector Alarm. It generates an alarm in case of gas leakage to avoid accidents. The offered alarm is designed and manufactured by our experienced professionals as per the set industry norms using supreme quality raw material and cutting-edge techniques. Owing to its compact design and durability, this Gas Detector Alarm is highly demanded in the market.

Features:

  • Error-free smooth functionality
  • Long life working
  • Fine finish
  • Good heat resistance
  • Affordable and feature-rich gas detector alarm for industrial applications
  • Reliable, pre-calibrated smart sensor for fast installation
  • High performance and eliminating false alarm
  • Selectable gas detector head to match your need for installation site
  • Variety of signals outputs to meet application needs
  • Compact design & easy to operate
  • Easy installation & low maintenance
  • Built-in self-diagnostic function

Technical Specifications

Detected gas

LP gas

Natural gas

No. of connectable detectors

KD-5G, KD-5T, GD-1B

KD-5M

Alarm type

Flashing red lamp(illuminated after alarm shut-off), non-latching(can be set to latching using DIP switch), alarm sound,

Alarm volume

70 dB/m min

Alarm shut-off

By pressing a button

Malfunction display

Flashing yellow lamp

Display of alarm unit operation

Illuminated green lamp

Power source

100V AC to 220V AC, 50/60Hz(Terminal block type)

Power consumption

Approx. 5W when monitoring (maximum)
Approx.10W during alarm(maximum)


External output

2-stage voltage (6V DC when monitoring, 12V DC during alarm, OV during error)

100V AC to 220V AC during alarm, 1A max. output(35-second output delay, can be changed to fast output with DIP switch).

1a, 1b contacts 220V AC, 1A max, or 24V DC, 1A max (35-second output delay, can be changed to fast output with DIP switch

Operating temperature range

-10oC to 40oC

Dimensions/weight

W138xH230xD45mm/Approx. 480g

Accessories

Inspection gas, wood screws, Mounting plate, Crimp terminals, Hex wrench
