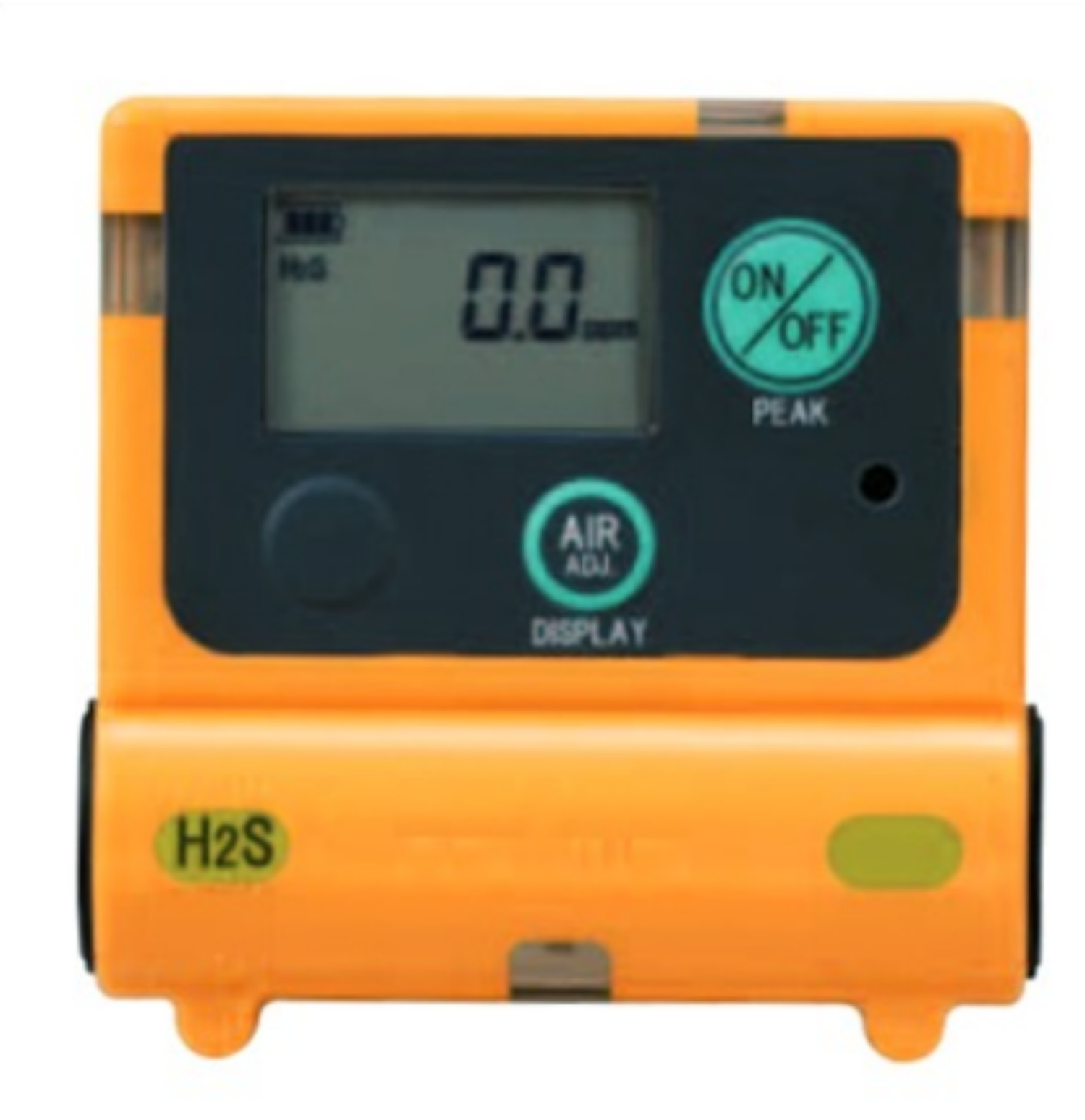

Hydrogen Sulfide Detector

Hydrogen Sulfide Detector
Hydrogen Sulfide Detector
Product Code : XS-2200
Product Description

With firm commitment to quality, we are involved in manufacturing, exporting and supplying a wide assortment of Hydrogen Sulfide Detector. This detector is manufactured by making use of the superior quality basic components under the surveillance of our diligent technical experts with the help of innovative techniques. It is mainly used for measuring H2S concentrations in confined area. Further, this Hydrogen Sulfide Detector is available in varied technical specifications.

Features:

  • Unique infrared NDIR gas sensor

  • Can measure concentration of other gases

  • Air to fuel ratio calculation and display

  • Auto zero setting with air


Specifications:

Model

XS-2200

Gas Detected

Hydrogen Sulfide (H2S)

Deletion Principle

Electrochemical cell

Sampling Method

Diffusion

Detection Range (Service Range)

0-30.0ppm (30.1-100ppm)

Resolution

0-35.0ppm: 1ppm
35-100ppm: 5ppm

Indication Accuracy

Within + 1.5ppm + 1digit

Alarm Set Value
1st stage
2nd stage

10.0ppm
15.0ppm

Response Time

30s or less

Display Mode

LCD (Manual backlight)

Alarm Mode

Buzzer sounds, flashing red light, vibrator

Functions

Peak hold, Remaining battery level, memory  of peak value, alarm functions except gas alarm (remaining battery level, sensor malfunction, air-adjustment malfunction).

Operating Temperature

-10oC to 40oC, 30-85% RH (non-condensing)

Operating Air Pressure

Air pressure+-10%

Power Source

1 x AAA alkaline dry cell

Battery Life

Up to 5,000 hours (at 20 oC with less than 5ppm)

Dimensions

W65 x D22 x H64mm (excluding protrusions)

Weight

Approx. 75g (including battery)

Standard Accessories

1 x AAA alkaline dry cell, 1 x safety pin adaptor (with fixing screw)

  • Under identical measuring conditions.
  • Assuming 90% response and operating at 20 + 2o C.
  • Battery life may vary with ambient conditions, conditions of use, storage period, battery manufactures, etc.
  • Available with gas calibration kit (optional).
