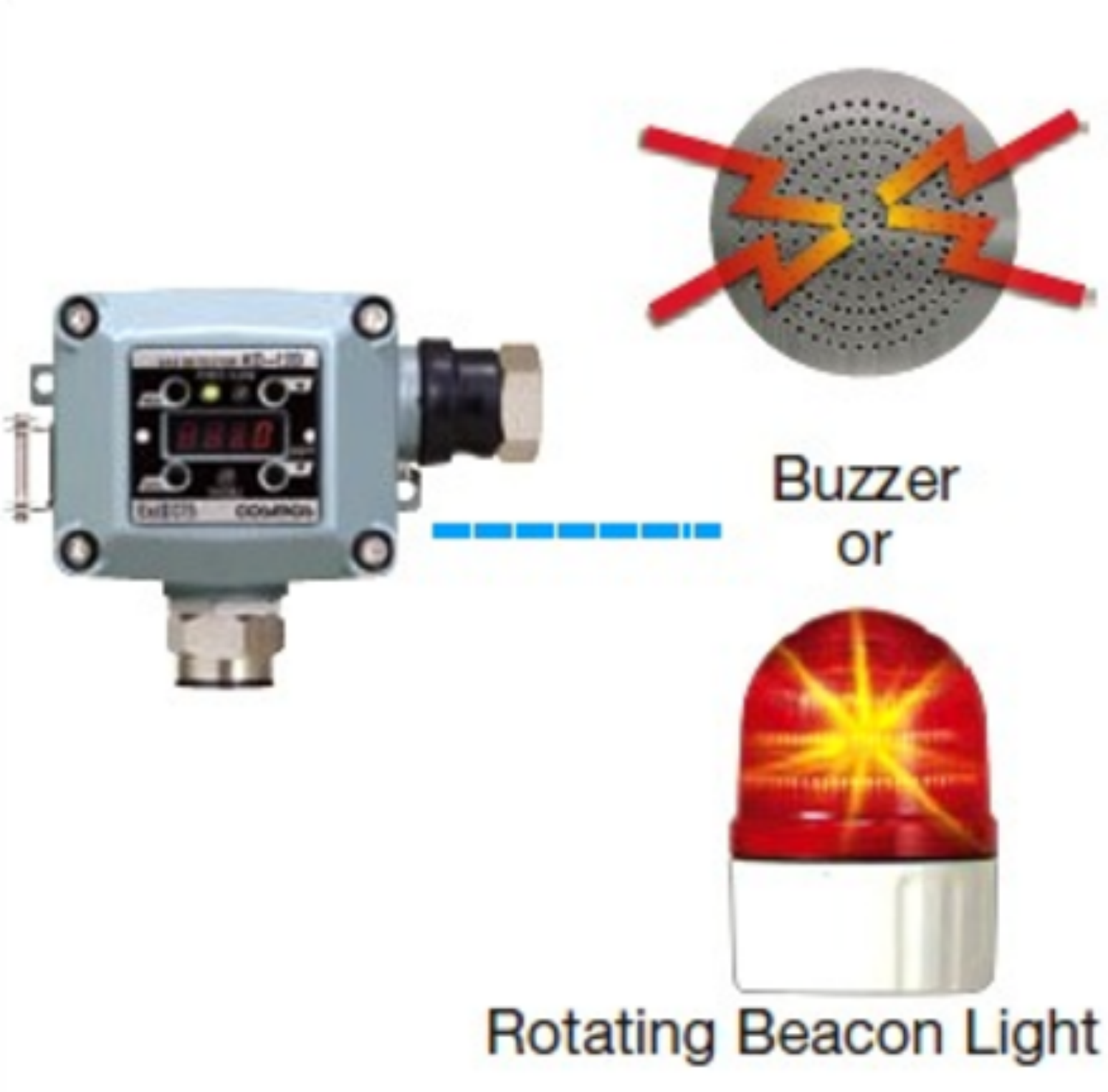

Rotating Beacon Light With External Buzzer

Rotating Beacon Light With External Buzzer
Rotating Beacon Light With External Buzzer
Product Code : 54
Product Description

Being a certified company, we are indulged in manufacturing, exporting and supplying pristine quality Rotating Beacon Light With External Buzze. This light is manufactured by utilizing superior quality components and advanced technology in tune with the international quality norms under the guidance of our deft professional. Offered light glow and raises the alarm after detecting the leakage of gas in a specific area. Our clients can purchase this Rotating Beacon Light With External Buzze from us in several specifications at marginal prices.

Features:

  • Rugged design

  • High operational fluency

  • Unmatched performance

  • Durability

Rotating Beacon Light With External Buzze

  • Simpler, smarter and reliable gas detector with digital display

  • Simple and cost effective installation

  • Rugged, compact and lightweight design

  • Environmentally friendly product.

Features

LED Display

Large and easy-to-see display shows the gas concentration and alarm indication

Easy maintenance

With a magnetic stick, zero and span adjustments can be done with out any difficulty on site.

Easy sensor replacement

The simple plug-in sensor module makes it easier.

Rugged, Compact and lightweight

Protection rating, IP65(Standard)

Size W 158xH116xD68mm, weight 1.2 kg

Explosion-Proof

KD-12A/B/C are designed as ExdIII CT5 for Hydrogen and Acetylene.

Technical Specifications

Mode

KD-12A

KD-12B

KD-12C

KD12D

KD-12O

Corresponding Sensor type

Hot wire semiconductor

Catlytic combustion

Thermal conductivity

Electrochemical cell

Galvanic cell

Target gas

Combustible/toxic gas

Hydrogen, Helium, Carbon dioxide

Carbon monoxide

Hydrogen sulfide

Oxygen

Sampling Method

Diffusion type

Detection range

As per specifications


0-100ppm, 0-150ppm or 0-250ppm

0-30ppm or 0-50ppm

0-25.0 vol%

Alarm Accuracy

Combustible gas: +25% of alarm set value(under identical conditions)

+30% of Alarm set value(under identical conditions)

+1.0 vol% of Alarm set value(under identical conditions)

Warning Display

Gas Alarm: Red LED lamps flashes
Trouble Alarm: Yellow LED lamp flashes(sensor trouble, power voltage mulfunction, etc.

Gas concentration Display

4-digit digital LED display

Cable connection

Screw-less/terminal block

Cable connection

Screw-less/terminal block

Degree of protection

IP65

Power supply

24V DC(18 to 30V DC)

Weight

Approx. 1.2 kg

Approx. 1.3 kg
