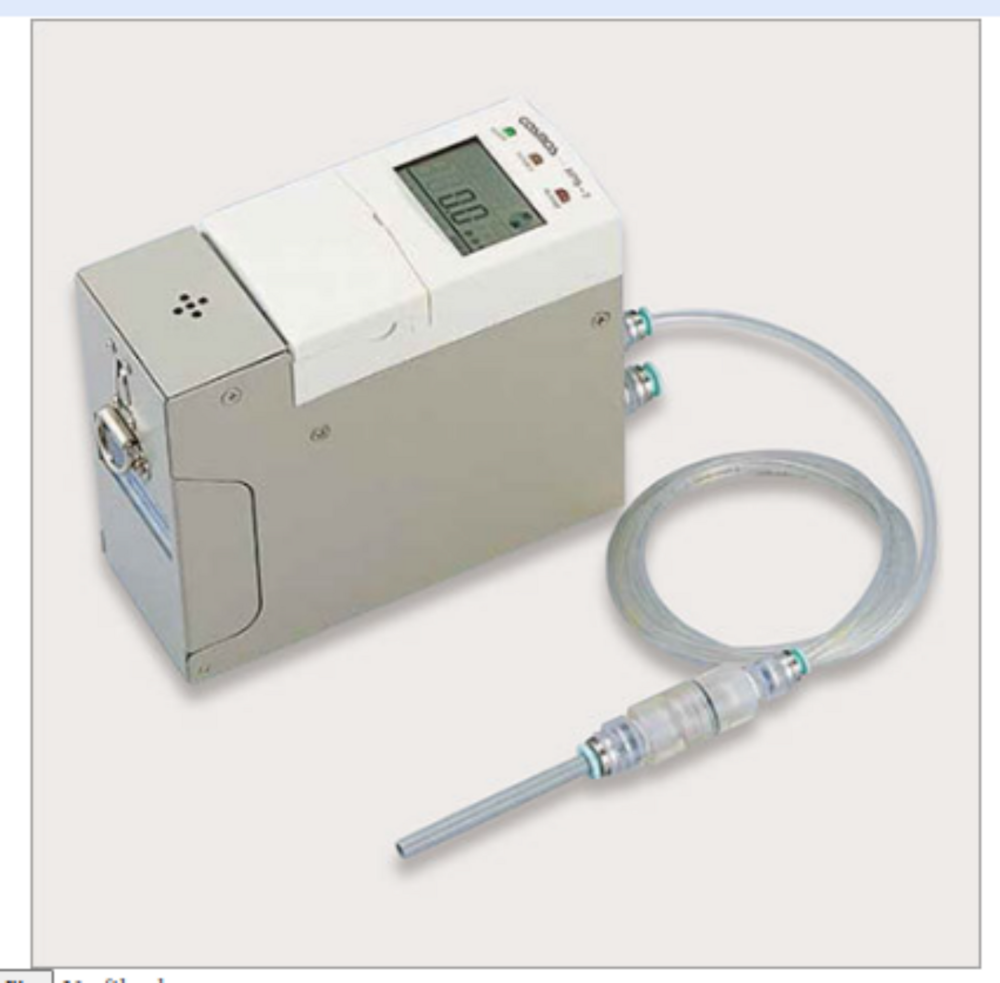

Odor Detector

Odor Detector
Odor Detector
Product Code : XP-329 III R
Product Description

Our enterprise is a leading manufacturer, exporter and supplier of a broad spectrum of Odor Detector. It is manufactured with high precision under our experts' supervision with the aid of modern methodology and using superior quality basic material. Provided detector is well suited for sensing the leakage of toxic and harmful gas through its odor. Also, this Odor Detector is available with us in diverse specifications.

Features:

  • Fitted with digital display unit

  • Long operational functionality

  • High strength

  • Excellent and accurate detection reading

Applications:

  • Performance check of air purifier and deodorization equipment.
  • Odor measurement of factory exhausts.
  • Quality control of foods and spices.

Specifications:

Model

XP-329 III R

Substance Measured

Various odors, odor components

Detection Principle

Indium oxide-based sensitivity hot wire semiconductor sensor

Sampling Method

Extractive *Extractive flow: 400+150ml/min

Display

LCD digital indication (64 x 128 dots matrix) (measurement value, measurement mode, operating conditions, remaining battery level, data memory, bar indication for sensor output and communication channel etc.)

Measurement Mode

Monitoring mode - Batch mode

Detection Range

Level indication: 0-2000 (In case of zero-based setting at the 2nd dot from the left In the sensor output bar graph)

Repeatability

Measurement value +5% +1 digit *1 level indication

Response Time

20s or less (90% response) by calibrated odor

External Output

Analog output: Level indication: 0000-2000 corresponding to DCO-200 mV. (0.1 mV as contrasted with indication 1) (Except approx. 204.8mV in case of OVER LEVEL)


Digital input/output: RS-232C output the indicated value (ASCII Code) (Except in case of OVER LEVEL, output

External Output Terminal

DIN connector for both analog output and digital input/output

Operating Temperature and Humidity

Temperature: 0 to 40°C Humidity: 10-80% RH (non-condensing)

Dimensions

W84 x H275 x D40mm (excluding protrusions)

Weight

Approx. 6409 (including batteries)

Power Source

4 x AA alkaline dry cells or AC adaptor

Battery Life

Up to 8 hours by alkaline cells, low battery alarm function

Standard Accessories

Activated carbon filter, Drain filter, Sample draw attachment, Tube intake, AC adaptor, Carrying case, Output connector, Communication pack (CD), 4 x AA alkaline dry cells, ptfe tube (1 m), 2 x Activated carbons, 2 x Filter elements (10 pcs.), Instruction manual, Test report
