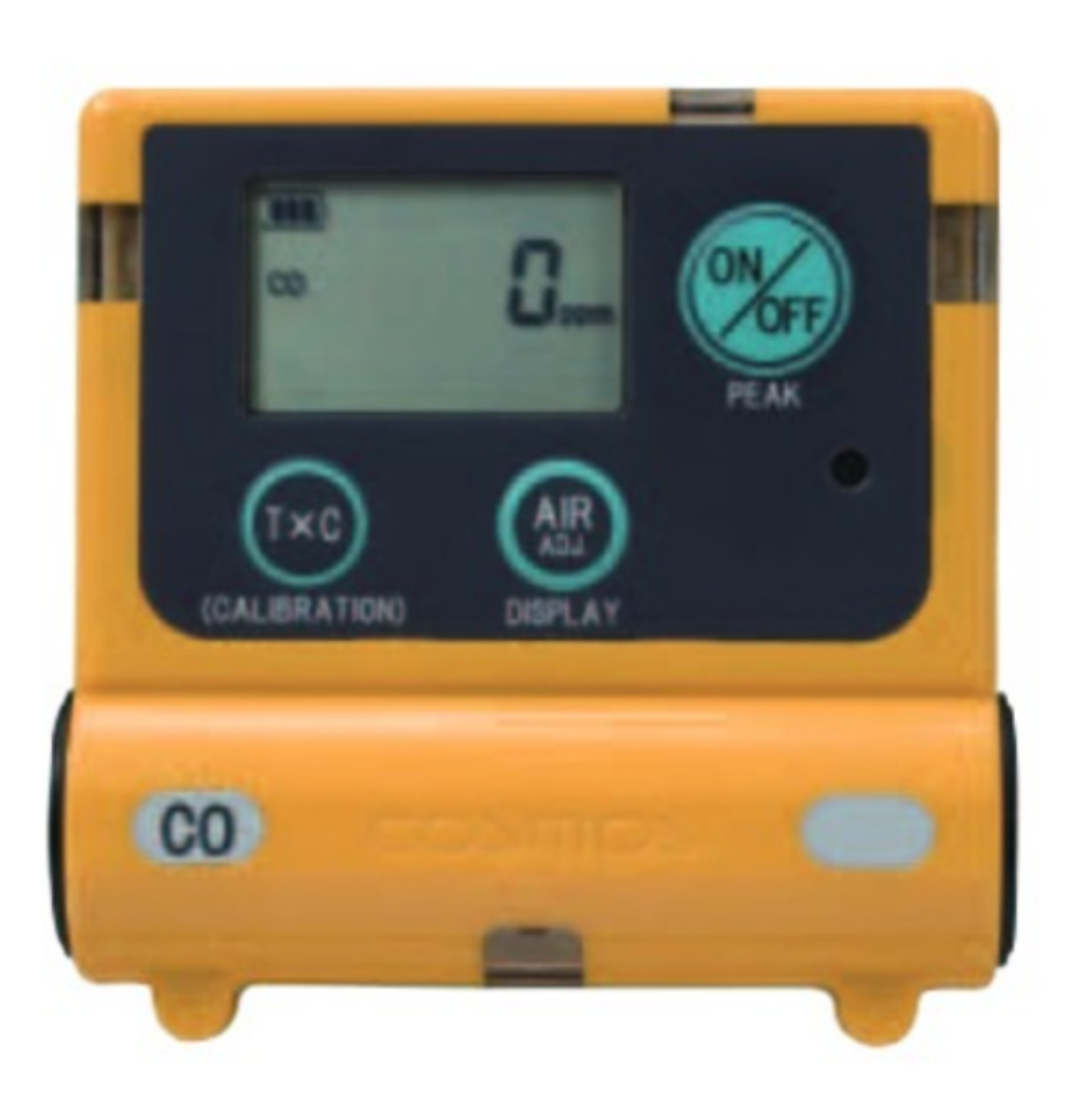

Carbon Monoxide Detector

Carbon Monoxide Detector
Carbon Monoxide Detector
Product Code : XC-2200
Product Description

Backed by technologically advanced manufacturing unit, we have been able to offer our clients a qualitative range of Carbon Monoxide Detector. Offered detector is manufactured using supreme class raw material with the help of latest techniques by our experts. This detector is used to measure level of carbon monoxide gas. Apart from that, this Carbon Monoxide Detector is available in varied specifications as per the specific requirements of clients.

Features:

  • Clear display
  • Fine finish
  • Accurate result
  • Easy to use
  • Can be used continuously for 5000 hours.
  • Available with loud buzzer, alarm lamp from 4 dimensions, peak hold funcflon.
  • Available with TWA (Time weighted average) gas concentration display, memory of peak value, and peak hold function.
  • Thin, lightweight design.

Specifications:

Model

XC-2200

Gas Detected

Carbon Monoxide (CO)

Deletion Principle

Electrochemical cell

Sampling Method

Diffusion

Measuring Range (Service Range)

0-300ppm (300-2,000ppm)

Resolution

0-350ppm: 1ppm / 350-2,000ppm: 50ppm

Indication Accuracy

Within +- 30ppm

Alarm Set Value

50ppm (first stage), 150ppm (second stage),
150ppm-h (time weighted average)

Response Time

30s or less (90% of final reading)

Display Mode

LCD (Manual backlight)

Alarm Mode

Buzzer sounds, fl ashing red light, vibrator

Functions

Remaining battery level, peak hold, peak value memory, readout of time weighted average, alarm functions except gas alarm (time weighted average value, sensor malfunction, remaining battery level,zero-adjustment malfunction), gas calibration

Operating Temperature

-10 oC to 40 oC, 30-90% RH (non-condensing)

Operating Air Pressure

Air pressure+-10%

Power Source

1 x AAA alkaline dry cel

Battery Life

Up to 5,000 hours (at 20 oC with less than 20ppm)

Dimensions

W65 x D22 x H64mm (excluding protrusions)

Weight

Approx. 75g (including battery)

Standard Accessories

1 x AAA alkaline dry cell, 1 x safety pin adaptor (with fixing screw)

  • Under identical measuring conditions.
  • Operating at 20+2oC.
  • Battery life may vary with ambient conditions, conditions of use, storage period,battery manufactures, etc.
