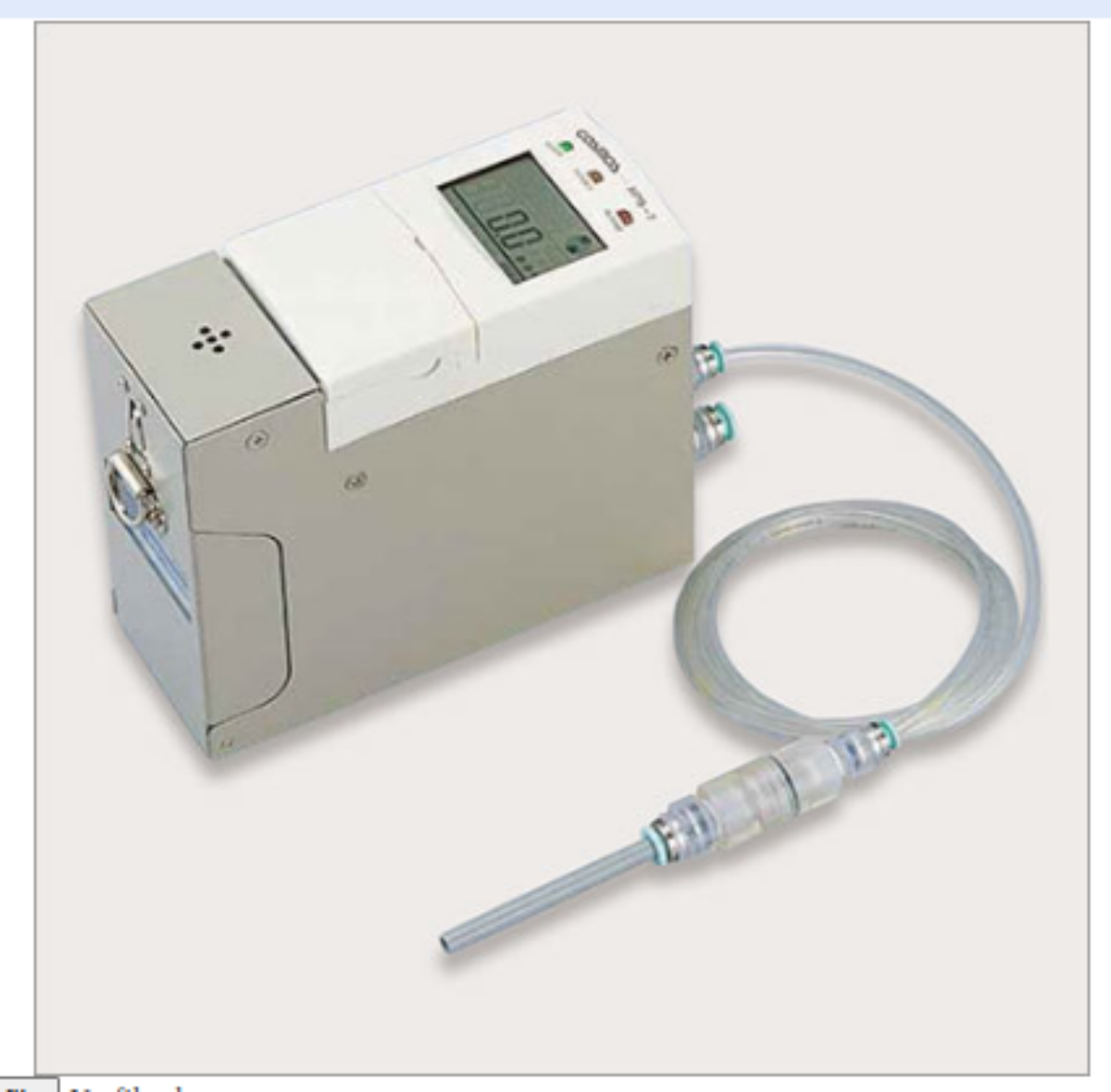

Toxic Gas Detector

Toxic Gas Detector
Toxic Gas Detector
Product Code : XPS-7
Product Description

With dedicated team of technical experts, we are able to manufacture, export and supply a qualitative array of Toxic Gas Detector. This gas detector is efficiently manufactured with the aid of pioneering methodology by making use of excellent quality basic material. Ideal for boilers, industrial plants and refineries, it is used to sense and detect the leakage point of toxic gases. Further, our clients can avail this Toxic Gas Detector in varied specifications at industry leading prices.

Features:

  • Optimum detection efficiency

  • No maintenance needed

  • Does not require in-field training

  • Detects gas leaks from 2 BAR (29 psi) pressure

List of detected gases

Type

Gas

Full Scale

XDS-7NH

NH3

100 pm

XDS-7SH

SiH4

25 ppm

XDS-7DC

SiH2CI2

25 ppm

XDS-7AH

AsH3

250 ppb

XDS-7PH

PH3

1 ppm

XDS-7BH

B2H6

500 ppb

XDS-7SE

H2Se

250 ppb

Type

Gas

Full Scale

XDS-7GH

GeH4

1ppm

XDS-7L

CI2

5 ppm

XDS-7CF

CIF3

1 ppm

XDS-7HC

HCI

25 ppm

XDS-7HF

HF

10 ppm

XDS-7HB

HBr

10 ppm

XDS-7NO

NO

100 ppm



Type

Gas

Full Scale

XDS-7HS

H2S

50 ppm

XDS-7CO

CO

250ppm

XDS-7DS

Si2H2

25 ppm

XDS-7F2

F2

5 ppm

XDS-70Z

O3

1 ppm

XDS-7SO

SO2

10 ppm

XDS-7ND

NO2

10 ppm

Model

XPS-7

Detection Principle

Electrochemical cell

Gas Detected

Semiconductor manufacturing gases

Gas Sampling Method

Extractive

Detection Range

Depends on the specifications

Resolution

1/100 of full scale

Indication Accuracy

+10% of full scale

Alarm Mode

2nd stage alarm type

Alarm Indication

Intermittent buzzer, flashing lamp

Response Time

60s or less (60% response)

Operating Temperature

0 to 40°C

Power Source

4 x AA alkaline dry cells (*2) or an AC adaptor

Battery Life (*2)

Up to 12 hours (by alkaline dry cells at 20°C without alarms)

Dimensions

W62 x H150 x D128mm (excluding protrusions)

Weight Approx.

1.3kg

Standard accessories

Gas sampling hose with probe, shoulder strap, 4x AA alkaline dry cells, Spare filters

Optional Accessories

AC adaptor (100 VAC/6 VDC), sensor stocker, log data collection kit
