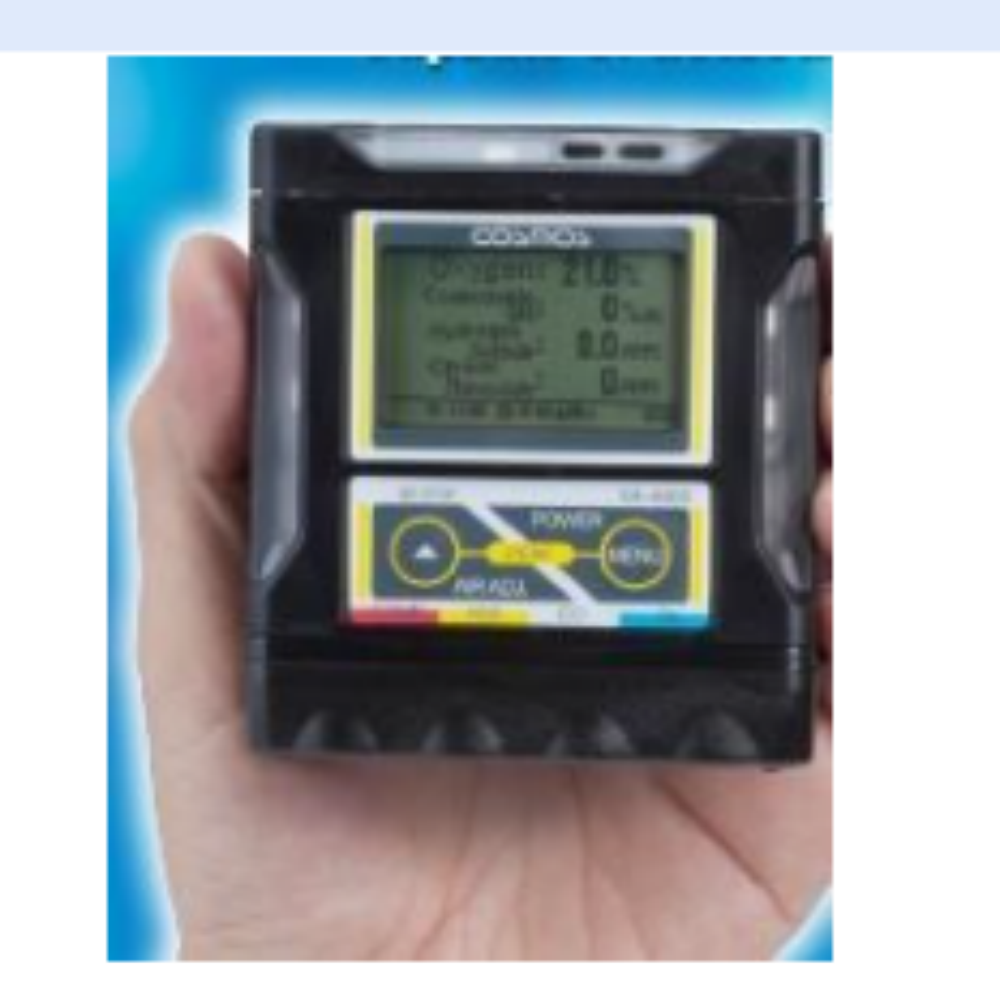

Multi Gas Detector

Multi Gas Detector
Multi Gas Detector
Product Code : XA 4000 Series
Product Description

Aided by modern machinery, we manufacture, export and supply optimum quality Multi Gas Detector. It is manufactured with utmost efficiency under experts' guidance with the aid of pioneering technology and by making use of top-of-the-line components. Offered detector is a safety system that detects the presence of gases in an area. Fitted with interface with a control system, offered Multi Gas Detector is mainly used to detect gas leakage.

Features:

  • Accurate gas detection
  • Fitted with infrared point sensors
  • Increased operational efficiency
  • Wide display unit



Technical Specifications

Model

XA-4400

Gas Detected

Combustible gas(methane/iso-butane)

Oxygen

Hydrogen sulfide

Carbon monoxide

Detection principle

Catalytic combustion

Galvanic cell

Electrochemical cell

Electrochemical cell

Sampling method

Diffusion




Detection range(service range)

0-100% LEL(101-110% LEL)

0-25.0vol%(25.1-50.0 vol%)

0-30.0ppm(30.1-150.0ppm)

0-300ppm(301-2000 ppm)

Alaram Set Value

1st stage: 10% LEL
2nd stage: 30% LEL
1st stage: 19.5% vol
2nd stage: 18.0% vol
1st stage: 10.0 ppm
2nd stage: 15.0ppm
1st stage: 50ppm
2nd stage: 150ppm

Operating temperature

-10 to 40 degrees C, 30 to 85% RH(non condensing)

Power source

2x AA alkaline dry cells

Display

LCD Display

Alarm Mode

Buzzer, flashing red lamps, flashing LCD display, vibration

Battery life

Approx. 15 hours(at 25 degrees C with out alarm, backlight and data logging)

Explosion-Proof structure

Ex iad II BT 3 (Japan)

Functions

Automatic backlight

Auto Zero adjustment (oxygen: 21 vol%)

Peak hold (lower limit for oxygen)

Display remaining battery life, temperature and time

Alarm test

Change alarm volume setting(unlock)

Change of alarm set value setting (unlock

Data logging (optional data logger is required)

Self-diagnosis function

TWA/STEL function

Dimensions

79(W) x 89(H) x 33(D)

Weight

Approx. 230g

Application

  • Confined space
  • Refineries
  • Construction
  • Electric power
  • Communications
  • Sewerage
  • Fire service
  • Chemical plants
  • Petrochemical plant
  • Shipyard
