Odor Sensor

Odor Sensor
Odor Sensor
Product Code : ESM-100 CAN-NETSU-KUN
Product Description

We a well-known manufacturer, exporter and supplier in the domain, engaged in offering excellent quality Odor Sensor. Under our experts' direction, this sensor is manufactured by utilizing high quality basic material with the aid of modern technology. It is a quartz-crystal micro-balance sensor that is used to detect the presence of odour of any gas in the environment. Moreover, this Odor Sensor is made available in diverse specifications at pocket friendly costs.

Features:

  • Available with loud buzzer, peak hold function
  • Available with Time Weighted Average
  • Lightweight & thin design
  • Gas calibration kit

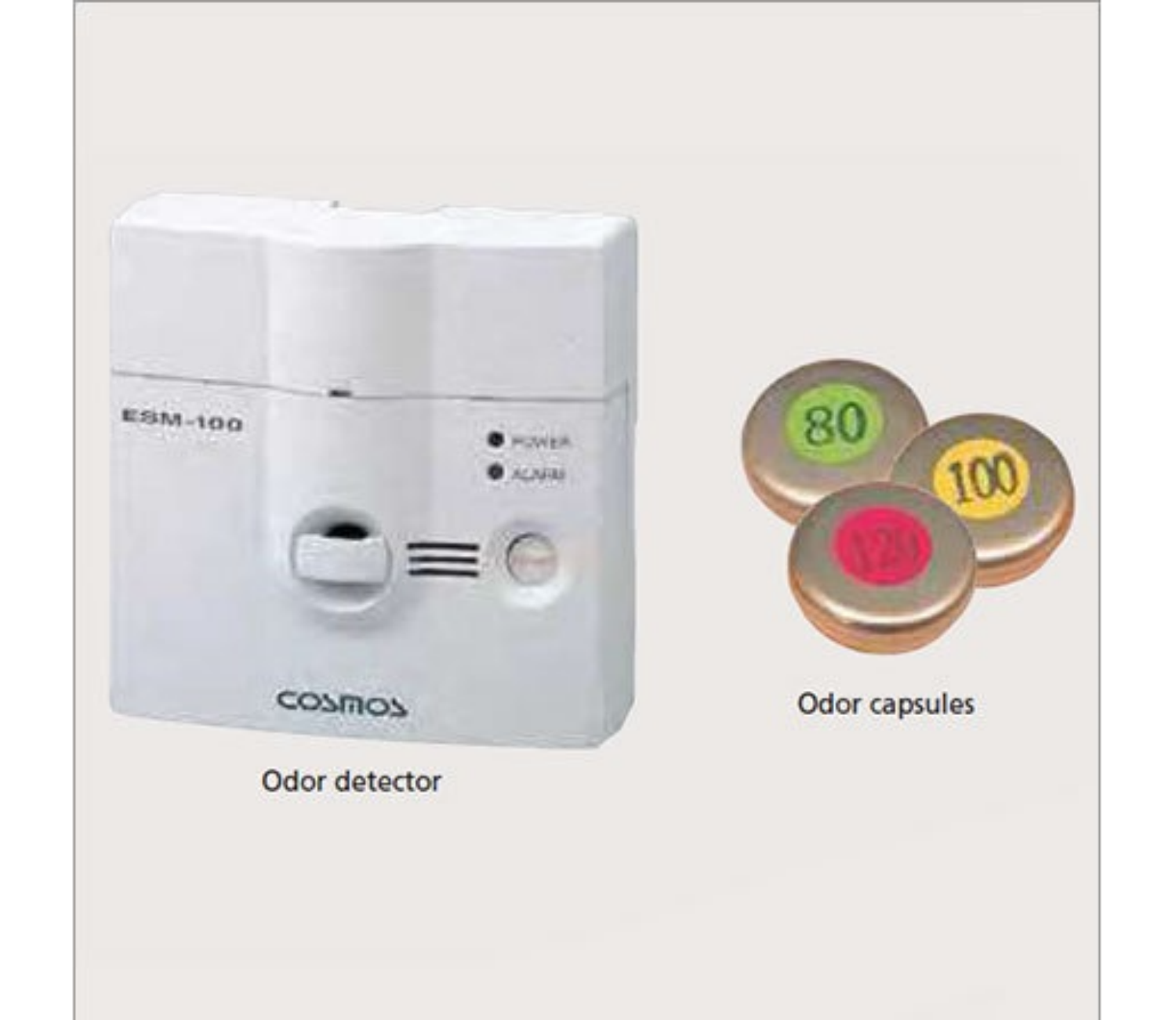

  • An odor detector immediately detects the odor caused by overheated insulating materials.
  • An odor capsule senses overheating and emits odor, which is detected by the odor detector.

Odor detector specifications:

Model

ESM-100

Power Source

100-240V AC, 50/60Hz

Power Consumption

3W

Alarm System

Alarm delay system (with 30s timer)

Alarm Indication

Red LED lights up, Buzzer sounds

External Output

No-voltage(1a) contact, Contact capacity: 1A@30V DC or 1A@240V AC

Dimensions/Weight

W96 x D96 x H41mm/Approx. 150g

Detectable Volume

Approx. 13m. (With one odor capsule, regardless of whether there's a ventilation fan or not)

Recommended Replacement Period

5 years


Odor capsule specifications:

Model

NC-80 (80 degrees C level) green, NC-100 (100 degrees C level) yellow, NC-120 (120 degrees C level) red

Designed Action Temperature

80, 100, 120 degrees C

Dimensions/Weight

Ø15xH7mm/Approx. 5g

Recommended Replacement Period

5 years

Setting Method

Double side adhesive tape or exclusive holder

Feature of Odor

Liquid Harmless to humans, no hazard of fire
