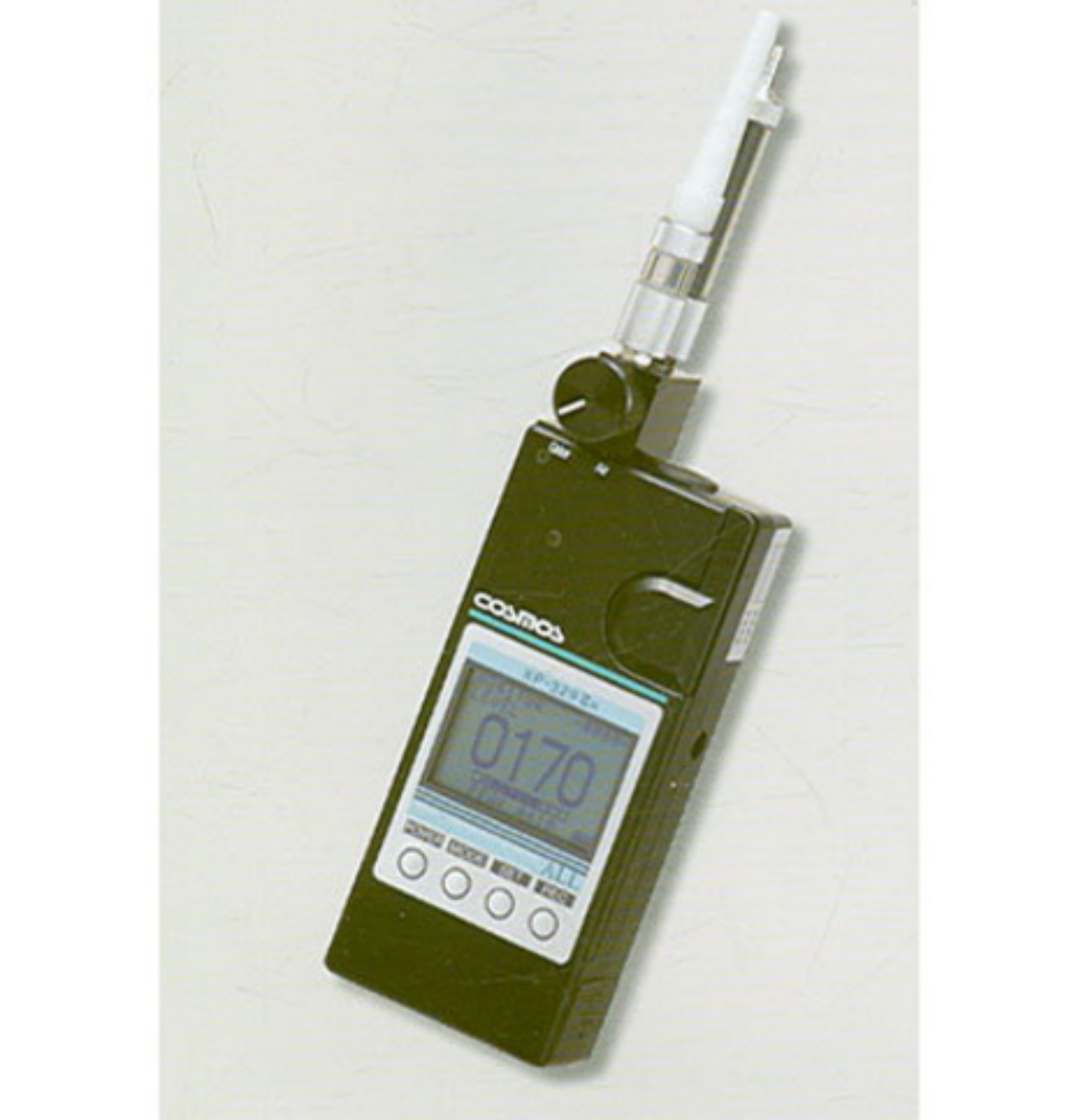

Odor Level Indicator

Model

XP-329 III R

Substance Measured

Various odors, odor components

Detection Principle

Indium oxide-based sensitivity hot wire semiconductor sensor

Sampling Method

Extractive *Extractive flow: 400±150ml/min

Display

LCD digital indication (64 x 128 dots matrix)
(measurement value, measurement mode, operating conditions, remaining battery level,
data memory, bar indication for sensor output and communication channel etc.)

Measurement Mode

Monitoring mode/Batch mode

Detection Range

Level indication: 0-2000 (In case of zero-based setting at the 2nd dot
from the left in the sensor output bar graph)

Repeatability

Measurement value ±5% ±1 digit*1 level indication

Response Time

20s or less (90% response) by calibrated odor

External Output

Analog output: Level indication: 0000-2000 corresponding to DC0-200
mV. (0.1 mV as contrasted wiyh indication 1)
(Except approx. 204.8 mV in case of OVER LEVEL)

Digital input/output: RS-232C output the indicated value (ASCII Code)
(Except in case of OVER LEVEL, output[****])

External Output Terminal

DIN connector for both analog output and digital input/output

Operating Temperature

/Humidity

0 to 40 °C

10 to 80 %RH (non-condensing)

Dimensions

W84 x H275 x D40 mm (excluding protrusions)

Weight

Approx. 640kg (including batteries)

Power Source

4 x AA alkaline dry cells or AC adaptor

Battery Life

Up to 8 hours by alkaline cells, low battery alarm function

Standard Accessories

Activated carbon filter, Drain filter, Sample draw attachment, Tube intake, AC adaptor,
Carrying case, Output connector, Communication pack (CD), 4 x AA
alkaline dry cells, Teflon tube (1m), 2 x Activated carbons, 2 x Filter
alements (10 pcs.), Instruction manual, Test report
