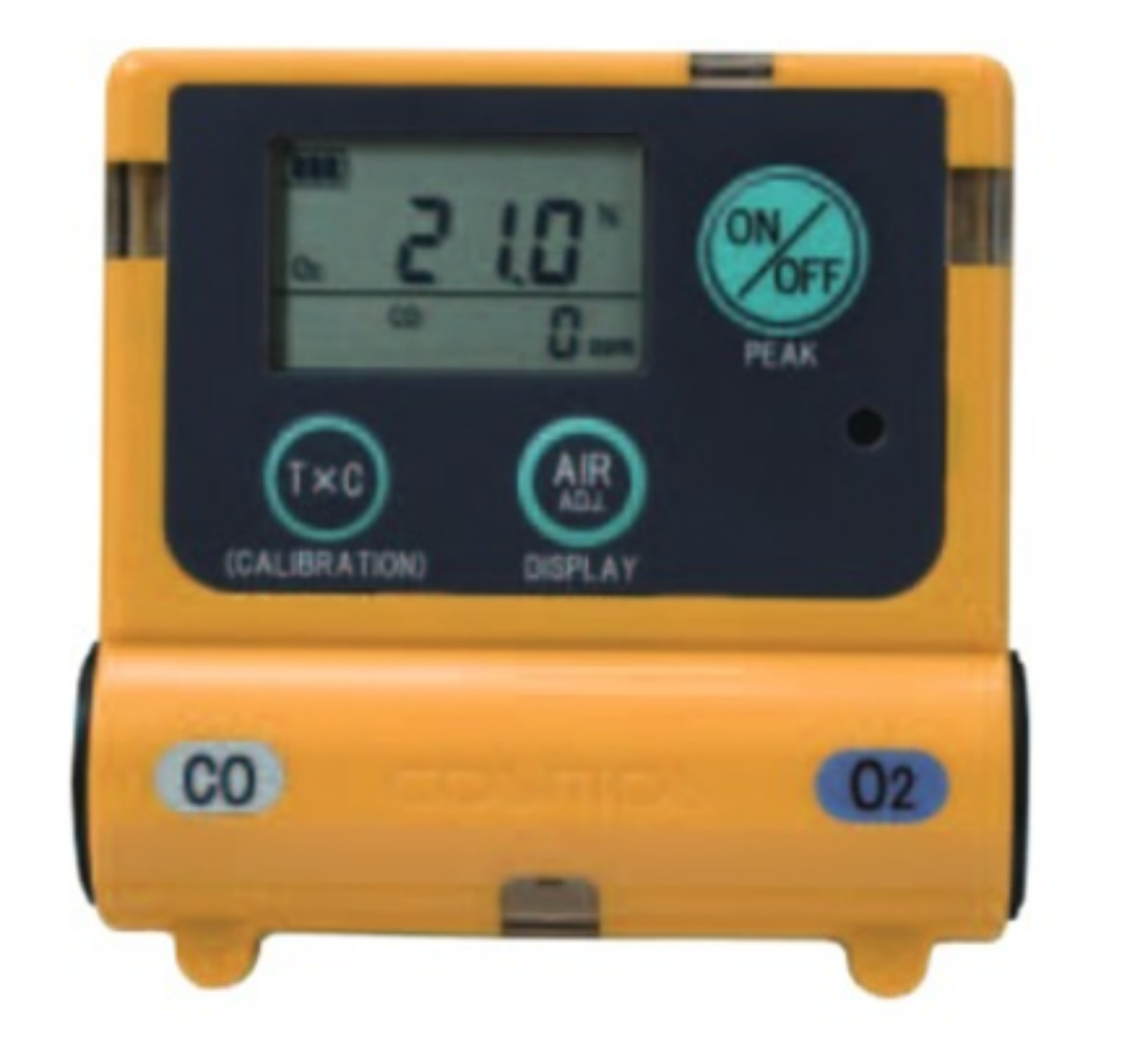

Carbon Monoxide Oxygen Detector

Carbon Monoxide Oxygen Detector
Carbon Monoxide Oxygen Detector
Product Code : XOC-2200
Product Description

As an affluent manufacturer, exporter and supplier in this domain, we are instrumental in offering a high quality range of Carbon Monoxide Oxygen Detector. It is equipped with an electrochemical sensor and is used for detection carbon monoxide oxygen gas levels in petroleum refineries, boiler room, etc. The offered detector is designed under the supervision of our professionals using top quality raw material and advanced technology. Available in various specifications as per the needs of the clients, this Carbon Monoxide Oxygen Detector can easily be connected to exhaust fans, air ventilation systems, etc.

Other Details:

The Carbon Monoxide Oxygen Detector offered by us, is manufactured using the state of art facility to ensure it meets the industry standards. In order to manufacture this detector, our experienced professionals use top-notch quality materials. This detector is used for detection of carbon monoxide oxygen gas in petroleum refineries and boiler rooms. It is easy to install and is available for clients at highly competitive price.

Features:

  • Easy to install
  • Compact design
  • Durability
  • Accurate result
  • Can be used continuously for 5000 hours
  • Available with loud buzzer, alarm lamp from 4 dimensions, and peak hold function
  • Available with TWA(Time Weighted Average) gas
  • Concentration display, memory of peak value, and peak hold function.

Technical Specifications

Model

XOC-2200

Gas detected

Oxygen (O2)

Carbon Monoxide(CO)

Detection principle

Galvanic cell

Electrochemical cell

Sampling method

Diffusion

Measuring range(service range)

0-25vol%(25-50vol%)

0-300ppm: 1ppm
(350-2000ppm: 50ppm)

Resolution

0.1vol%

0-350ppm: 1ppm
350-2000ppm: 50ppm

Indication accuracy

With in +0.5 vol%

With in +30ppm

Alarm set value

1st stage: 19.5vol%
2nd stage: 18.0vol%
1st stage: 50ppm
2nd stage: 150ppm
150ppm: h(time weighted average)

Response time

20s or less

30s or less

Display mode

LCD(Manual backlight)

Alarm mode

Buzzer sounds, flashing red light, vibrator

Functions

Remaining battery level, Peak hold, peak value memory, readout of time weighted average, remaining battery level, alarm functions except gas alarm (time weighted average, sensor malfunction, battery level, zero-adjustment malfunction), gas calibration, gas concentration indication

Operating temperature

-10oC to 40oC, 30-90% RH(no-condensing)

Operating air pressure

Air pressure +10%

Power source

1xAAA alkaline dry cell

Dimensions

W65xH67xD22mm(excluding protrusions)

Weight

Approx. 75G (including battery)
