Flue Gas Detector

Flue Gas Detector
Flue Gas Detector
Product Code : XP-3180E
Product Description

Since our foundation in 1985, we have been betrothed to manufacture, export and supply the pristine quality Flue Gas Detector. This detector is widely used for measuring the concentration of several gases and adjusting burners on a boiler for optimal combustion. Available in bulk, offered detector can be purchased by our patrons at economical rates. In addition, the provided Flue Gas Detector is manufactured by our diligent professionals using quality-approved components and cutting-edge techniques.

Features:

  • Optimum sensitivity
  • Compact design
  • Clear display
  • User friendly operation

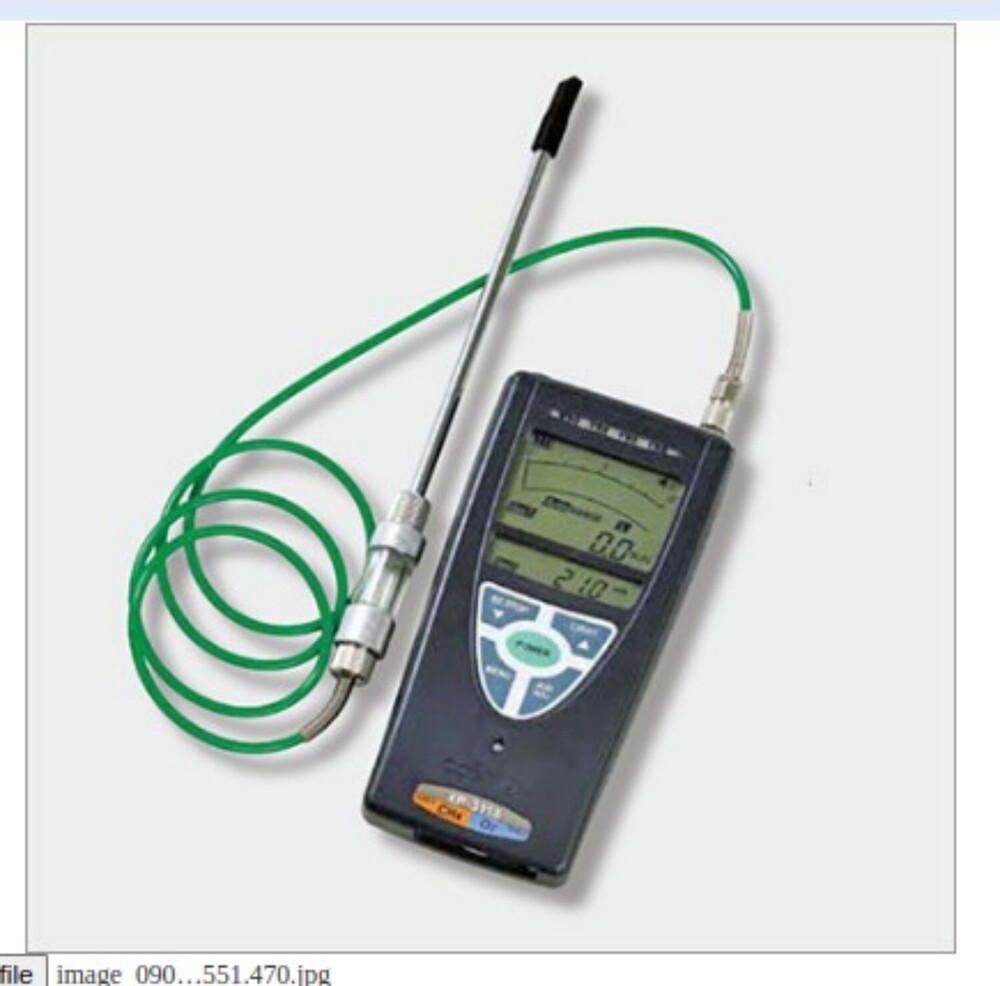

Flue Gas Detector (XP-3180E)

Features:

  • Suitable for measuring concentration of oxygen in the flue gas of boilers etc.

Specifications:

Model

XP-3180E

Gas Detected

Oxygen in the flue gas

Detection Principle

Galvanic cell

Sampling method

Extractive

Detection Range

0-25.0vol%

Indication Accuracy (Under identical conditions)

+0.3vol% (Compliant with JIS 8201)

Alarm Set Value

18.0vol%

Display

LCD digital (with back light), Digital display, Digital bar display

Alarm Indication

Gas alarm; Intermittent buzzer, Red lamp flashing Trouble alarm; Buzzer, Red lamp flashing, LCD display

Explosion-Proof Structure

Exib ll BT3

Operating Temperature

0 to 40°C

Power Source

4 x AA alkaline dry cells

Battery Life *1

Up to 100 hours

Dimensions

W82 x H162 x D36mm

Weight

Approx.450g

Standard Accessories

Soft case, 4 x AA alkalineldry cells, Gas sampling hose(1m), Probe With cooling drain filter

Optional Accessories

2-10m gas sampling hose, Curled probe, Data download software (CD-ROM software and USB cable)
