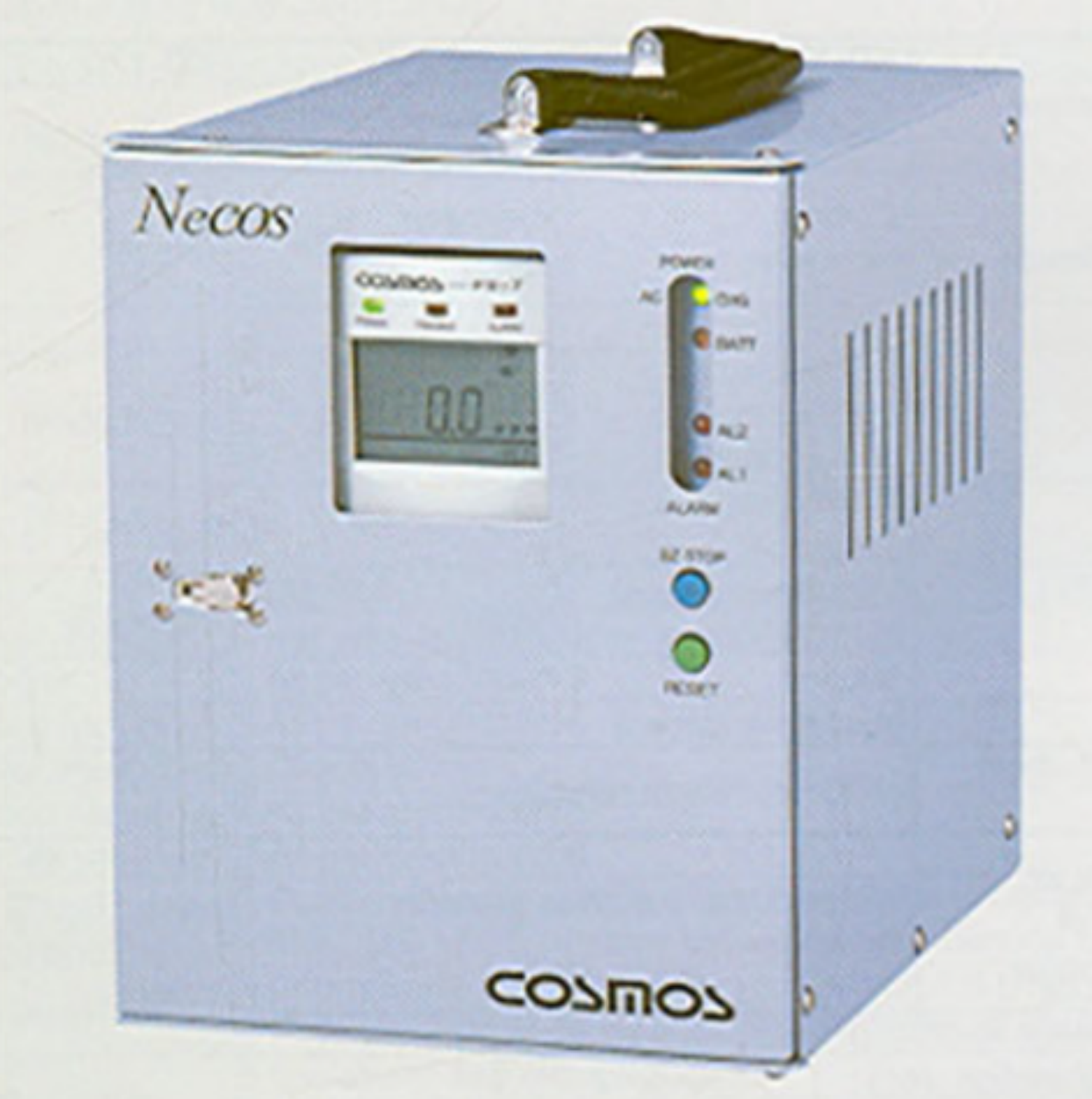

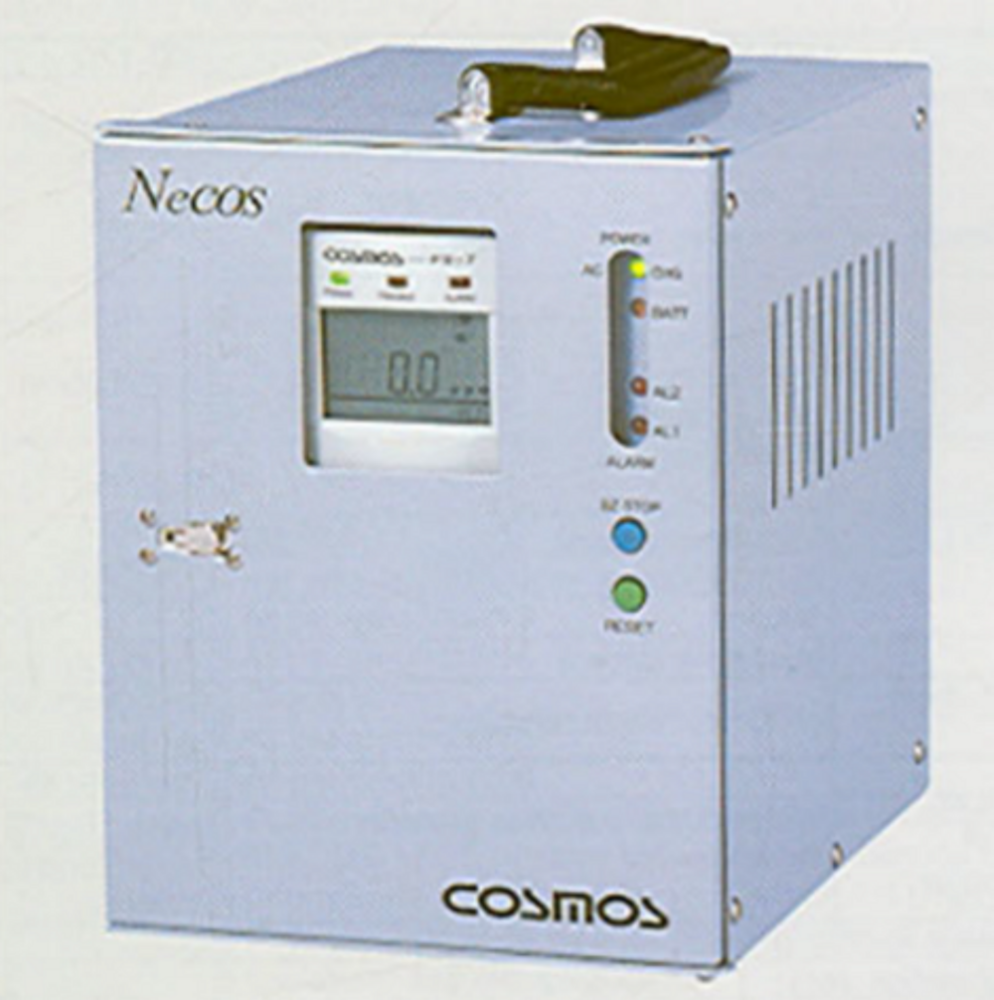

Desktop Type Gas Detection

Desktop Type Gas Detection
Desktop Type Gas Detection
Send Inquiry
Product Code : 23
Product Description

Features

  • Easy to monitor over 20 gases simply by changing a plug and play sensor.
  • Maintenance free
  • Portable and flexible
  • NF3 monitoring is available. (model specify)

Technical Specifications:

Model

PGD-120

Detection Principle

Electrochemical, Hot wire semiconductor,
Galvanic type

Sampling Method

Extractive type

Detection Range

As per specifications

Gas Concentration
Display

4-digit digital LCD display (incl. Unit)

20- Segment bar graph

Alam Set Point

2 stage alarm type (adjustable)

Alarm Display

Alarm lamp, Buzzer (no buzzer selectable)

External Output

Analog

4-20 mA

Alarm 1

1c voltage contact

Alarm 2

1c voltage contact

Trouble alarm

1c voltage contact

Contact Capacity

125 VAC, under 5 A

Power Supply

100 VAC to 220 VAC

Dimensions

W164 x H210 x D220mm

Weight

Approx. 5kg

Options

Battery, Pyrolyzer for NF3
