Features
Technical Specifications

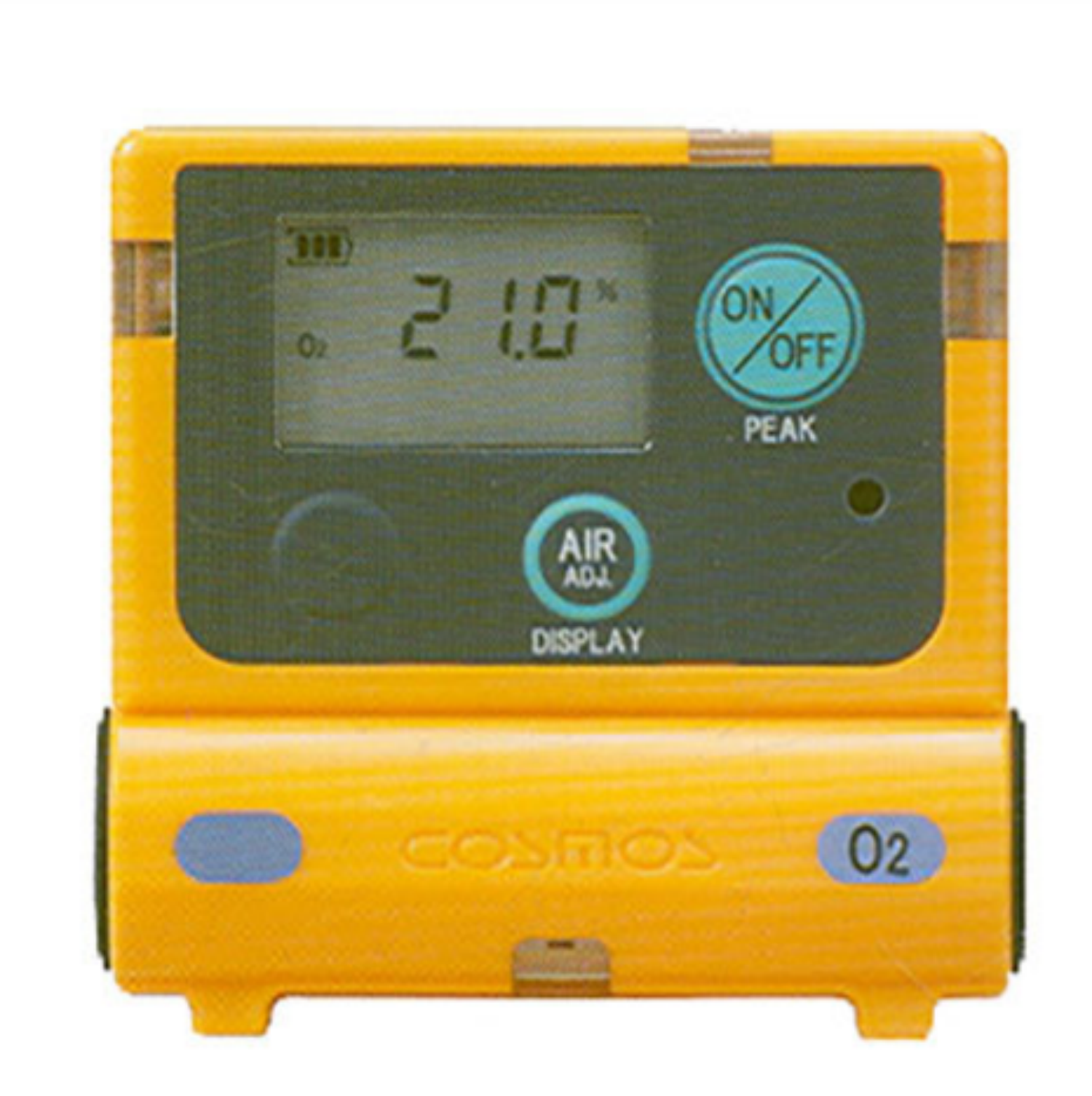

Model | XO-2200 |
Gas Detected | Oxygen |
Detection Principle | Galvanic cell |
Sampling Method | Diffusion |
Detection Range (Service Range) | 0 to 25 vol% (25 to 50 vol%) |
Resolution | 0.1vol% |
Indication Accuracy*1 | Within ±0.5vol% |
Alarm Set Value | 1st stage: 19.5vol% |
Response Time*2 | 20s or less |
Display Mode | LCD (Manual back light) |
Alarm Mode | Buzzer sounds, flashing red light, vibrator |
Approvals | Ex ib IIB T3 (TIIS) |
Function | Remaining battery level, peak hold, memory of peak value, |
Operation Temperature | -10 to +40 °C, 30 to 90 %RH (non-condensing) |
Operation Air Pressure | Air pressure ±10% |
Power Source | 1 x AAA alkaline dry cell (LR 03) |
Battery Life*3 | Up to 5000 hours (at 20°C without alarm) |
Dimensions | W65 x H64 x D22 mm (excluding protrusions) |
Weight | Approx. 75g (including batteries) |
Standard Accessories | 1 x AAA alkaline dry cell, 1 x safety pin adaptor (with fixing screw) |
![]() |
