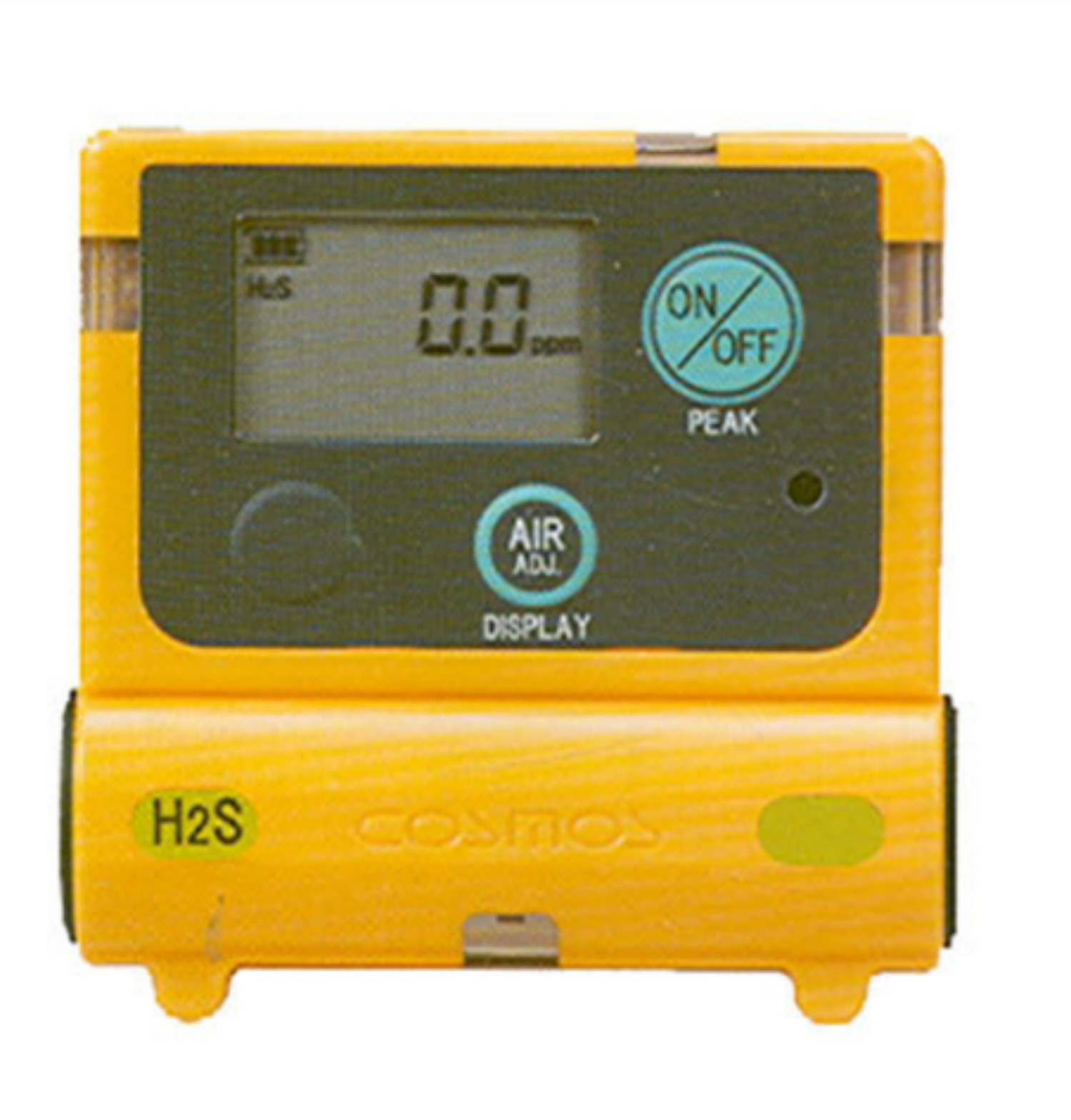

Personal H2S Detector XS 2200

Model

XS-2200

Gas Detected

Hydrogen Sulfide

Detection Principle

Electrochemical cell

Sampling Method

Diffusion

Detection Range

(Service Range)

0 to 30.0 ppm

(30.1 to 100 ppm)

Resolution

0-35.0ppm:0.1ppm
35-100ppm: 5ppm

Indication Accuracy^*1

Within +/-1.5ppm +/-1digit

Alarm Set Value

1st stage: 10.0ppm
2nd stage: 15.0ppm

Response Time^*2

30s or less

Display Mode

LCD (Manual backlight)

Alarm Mode

Buzzer sounds, flashing red light, vibrator

Approvals

Ex ib IIB T3 (TIIS)

Functions

Remaining battery level, peak hold, memory of peak value,
alarm functions except gas alarm (sensor malfunction, remaining battery level,air-adjustment malfunction)

Operation Temperature

-10 degree C to +40 degree C, 30 to 85 %RH (non-condensing)

Operation Air Pressure

Air pressure +/-10%

Power Source

1 x AAA alkaline dry cell

Battery Life^*3

Up to 5000 hours (at 20 degree C with less than 5ppm)

Dimensions

W65 x H64 x D22 mm (excluding protrusions)

Weight

Approx. 75g (including battery)

Standard Accessories

1 x AAA alkaline dry cell, 1 x safety pin adaptor (with fixing screw)
