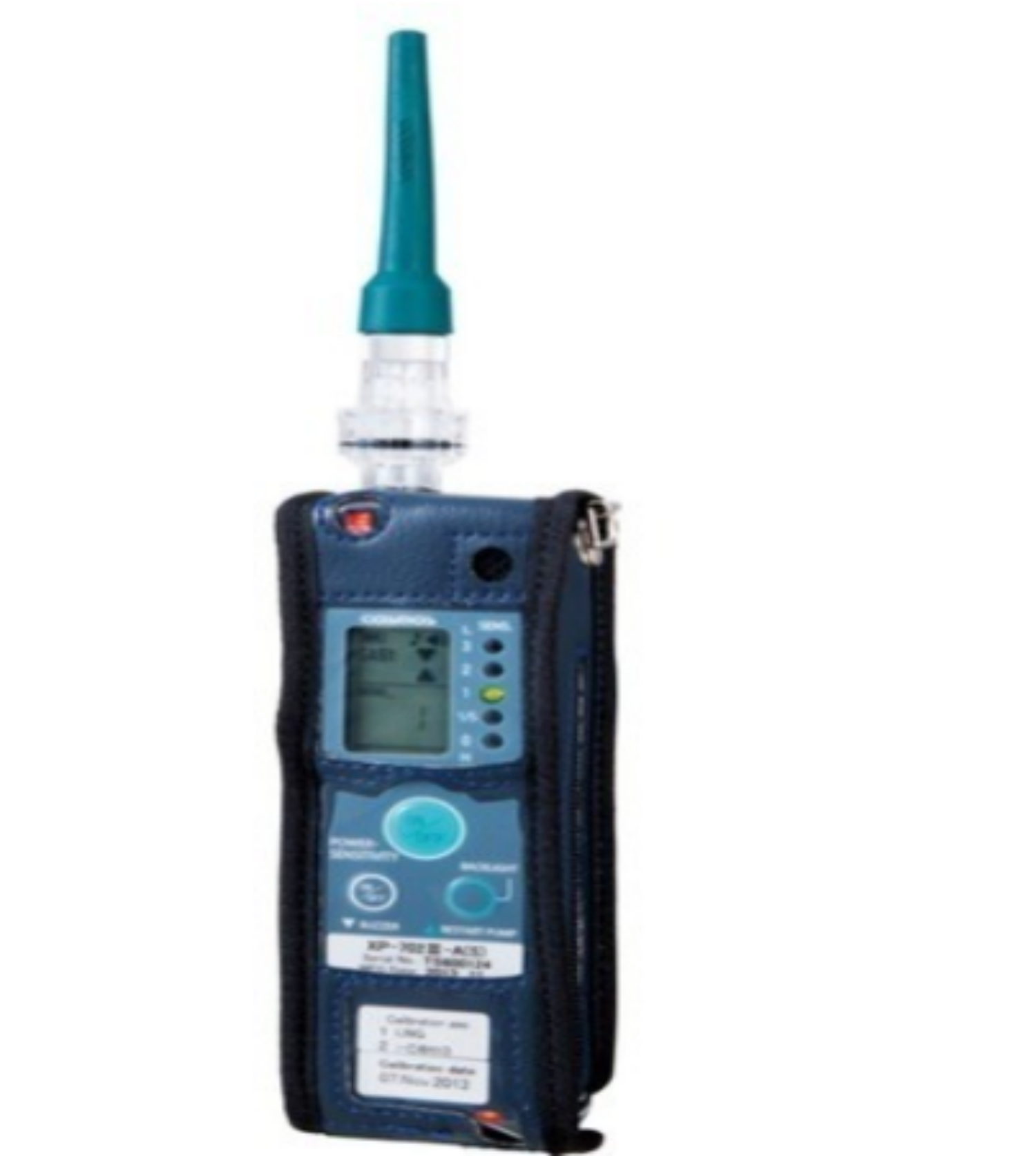

Our organization has gained recognition as one of the distinguished manufacturers, exporters and suppliers of high quality Combustible Gas Leak Detectors. These leak detectors are used for detecting the leakage of combustible gases. Suitable for liquefied petroleum gas (LPG), natural gas (methane), propane, etc, these gas leak detectors have both audio as well as video alarming facility. We design and manufacture these gas leak detectors in accordance with the international quality standards using optimum grade raw material and ultra-modern technology. Further, we offer these Combustible Gas Leak Detectors in various specifications as per the exact needs of the clients at industry leading price.
Features:
Compact design
Clear display
Easy to use
High strength
Specifications:
Model | XP - 702 II Z-B | XP - 702 II Z-A | XP - 702 II Z-F |
Gas Detected | One type of combustible gas (e.g., city gas, LPG) | Two type of combustible gas (selectable) | CFC substitutes and combustible gas (selectable) |
Detection Principle | Hot wire semiconductor | ||
Minimum Detectable Leak Rate | City gas, LPG, etc. : 3.3x10-6 Pa m3/S CFCs : Leakage of 12.4 g/year (R-407C) or 11.2 g/year (R-410A) | ||
Minimum Detectable Concentration | City gas, LPG, etc. : 10ppm CFCs : 30ppm | ||
Response Time | 3s or less (not including CFCs) | ||
Detection Indication | Intermittent buzzer and flashing lamp | ||
Power Source | 3xAA alkaline dry cells | ||
Battery Life | Up to 18 hours (by alkaline dry cells) at constant temperature and humidity | ||
Operating Temperature | -20 to 50 oC | ||
Dimensions | W60 x H140 x D40mm (excluding protrusions) | ||
Weight | Approx. 260g (excluding batteries) | ||
Standard Accessories | Probe with filter/moisture trap, Check gas, Standard attachment, 3xAA alkaline dry cells, Hand strap, Spare filters | ||
Optional Accessories | Probe for testing roadway surfaces, Telescopic gas probe, Earphones, etc. |
![]() |
